Fruiting chamber humidifier sizing and setup guide
How to size a humidifier for a monotub, shotgun chamber, martha tent or grow tent, where to put it, how to hold 90%+ RH without soaking your substrate, and how to keep the reservoir from becoming a contamination source.
Derick11 min read
Key takeaways
- Match humidifier mist output in mL/hr to your chamber volume and air exchange rate rather than relying on a single generic rating.
- Ultrasonic humidifiers produce fine 1–5 micron mist ideal for tents but require distilled or RO water to prevent mineral dust buildup.
- Mount humidifiers outside chambers using ducting to keep contam-prone reservoirs out of your fruiting zone.
- Duty cycle foggers in 10–20 second bursts to prevent RH overshoot and avoid soaking pins and substrate.
- Empty humidifier reservoirs every 2–3 days and scrub with dilute hydrogen peroxide weekly to prevent bacterial aerosolization.
A fruiting chamber humidifier should be matched to your chamber's volume and air exchange rate, then placed so mist never pools on substrate. This guide maps monotubs, martha tents, shotgun chambers, and small grow rooms to the right output class, placement, and drainage approach, so you hold 90%+ RH without flooding tubs.
What size humidifier does a small vs large fruiting chamber actually need?
Match the humidifier's mist output (mL/hr) to chamber volume, then adjust for air exchanges and exposed substrate surface. A 12-quart monotub and a 4x2 grow room differ by roughly 100x in volume, so a single "mushroom humidifier" rating cannot serve both. Undersized units cycle constantly and never hold 90%+ RH; oversized ones in small chambers soak casing and pin caps.
The sizing framework: volume, air exchange, and surface area
Start with volume in liters, then add two corrections. Shotgun fruiting chambers and martha tents with fresh-air exchange lose moisture faster than sealed tubs, so bump one output class. A wide, shallow substrate surface evaporates more than volume alone suggests, so a shallow 66-quart tub can need more mist than a tall, slim one of equal volume. Manufacturer output ratings in mL/hr are the numbers to compare, not tank size alone; typical consumer ultrasonic units run roughly 100–300 mL/hr per their spec sheets.
Worked examples: monotub, martha tent, shotgun chamber, 4x2 grow room
| Setup | Approx. volume | Suggested output class | Notes |
|---|---|---|---|
| Monotub (12–32 qt) | 11–30 L | Small desktop, ~100 mL/hr | Often fine with hand misting; humidifier optional |
| Shotgun chamber (27–66 qt) | 25–60 L | ~100–150 mL/hr | Drill pattern raises air exchange; lean higher |
| Martha tent (4-tier, about 27 x 19 x 63 in) | ~500 L | ~150–250 mL/hr | Ducted or in-tent placement |
| 4x2 grow room (5–6 ft tall) | 1,100–1,400 L | 250+ mL/hr, or multiple units | Hygrostat strongly recommended |
Log which unit and output class you ran per flush alongside your chamber notes; if you track grows in Hypha, add the setup details to each block's notes so flush-to-flush comparisons stay meaningful.
Ultrasonic vs impeller vs reptile fogger: which works best in a fruiting chamber with humidifier setups?
Ultrasonic: the default for tents and chambers
Ultrasonic units use a piezo disc vibrating at high frequency to shatter water into a fine mist, typically 1–5 microns. That fine particle size is why they dominate monotubs and martha tents: the mist suspends in air instead of raining down onto pins and caps. They are also quiet and cheap to run. The tradeoff is mineral dust. Unless you feed them distilled or RO water, every dissolved solid in your tap water gets aerosolized and settles as white powder on your tubs, your sensor, and your substrate.
Impeller and evaporative: when they make sense
Impeller units fling water at a diffuser screen, producing heavier droplets that suit open shelving racks or larger chambers where you want wet walls more than suspended mist. Evaporative wicks add humidity without over-spraying, but they top out well below the 90%+ RH a fruiting chamber with humidifier support usually needs, so treat them as supplements. Both are more forgiving on water quality than ultrasonics.
Reptile foggers and in-duct units for larger builds
Reptile foggers and ducted units move serious volume through a 1/4" or 1/2" line, which is what a multi-shelf martha or walk-in chamber wants. Log your RH setpoints, fill dates, and mineral-dust incidents against each chamber so you can compare flush-to-flush results and cost per pound across setups. That is exactly the kind of record Hypha is built for; Pro monitors up to five zones, so each chamber can be its own.
Where should the humidifier sit relative to the chamber: inside, outside, or ducted in?
Inside the chamber: cheap but contaminating
Dropping a small ultrasonic fogger straight into a martha tent is the fastest path to 95%+ RH, but everything in that reservoir (tank, transducer, standing water) sits in your fruiting zone. Any slime or chitin buildup on the transducer fogs directly onto your pins. If you go this route, use distilled or RO water only and pull the unit for cleaning between flushes.
Outside with ducting: the martha and grow-room standard
Mounting the humidifier outside and feeding mist in through 2–4" duct or gravity drip line keeps the wet, contam-prone hardware out of the grow space. This is the setup most multi-tent growers land on once they run more than one chamber, because one external unit can serve two tents on a controller. Keep duct runs short and slightly downhill toward the chamber so condensate drips into the tub area, not back into the humidifier. Most species fruit well between roughly 85–95% RH (a UC Cooperative Extension guide to small-farm mushroom growing gives oysters 95% to pin and 85–92% while cropping), which a ducted ultrasonic holds easily.
Reservoir placement and drainage logistics
Give the external unit its own drip tray or floor drain; a 1-gallon tank refilled daily gets old fast at 5–20 strains. If you're logging conditions per chamber and tying them to flush results, in a notebook or in Hypha, note which placement each chamber uses, since inside units tend to show sharper RH spikes in the data.

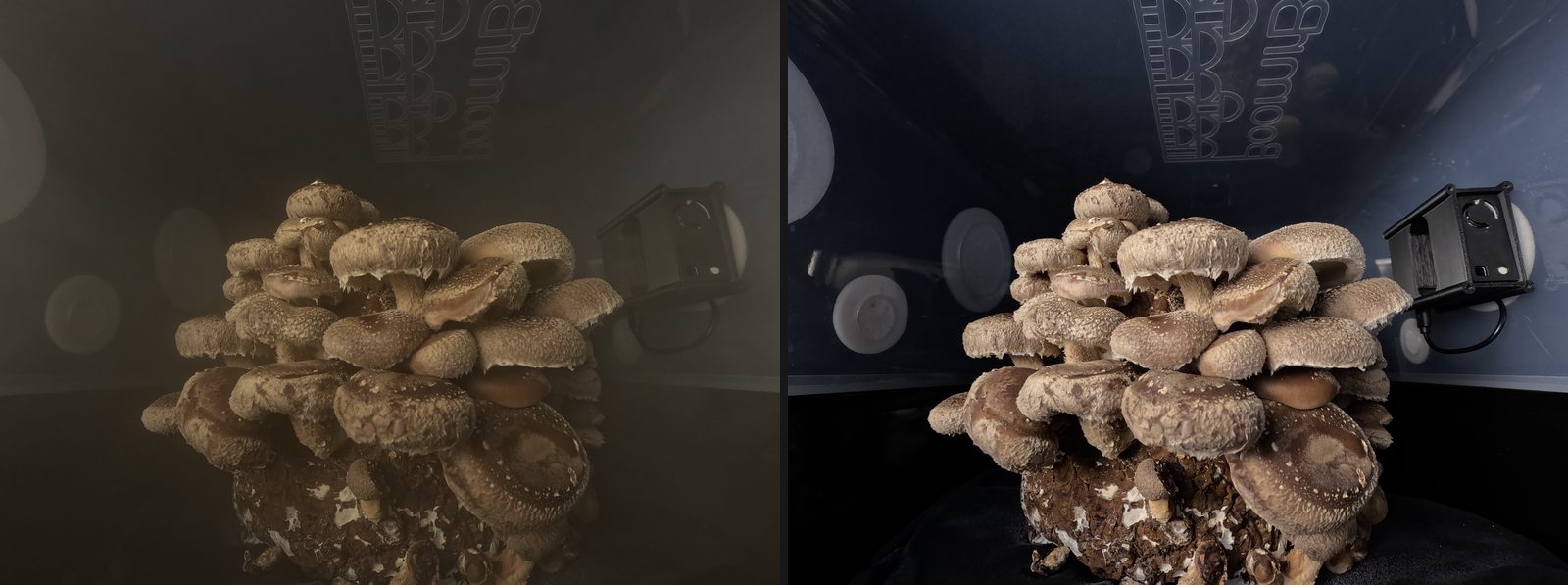

How do you keep RH stable without flooding tubs or soaking substrate?
Why on/off fogging overshoots
An ultrasonic fogger run full-on until your hygrometer reads target will always overshoot: fog keeps entering the chamber after the unit stops, and RH in a sealed martha tent can swing 15–20 points in minutes. The fix is duty cycling: short bursts (10–20 seconds every few minutes) rather than long runs. Smaller, more frequent pulses land closer to your target and leave less condensation on pins and substrate.
Hygrostat placement and deadband settings
Mount the sensor at canopy height, mid-chamber, away from the fog output; a sensor in the fog stream reads high and under-fogs. Set a deadband of 5–7 points (e.g., fog at 88%, stop at 93%) so the controller isn't cycling every few seconds. A well-placed sensor pays off later too: our Teaching Hypha to See dev log covers how a zone's humidity history helps explain symptoms like cracked, dry caps.
Drainage and drip management
Slope the chamber floor 5–10 degrees toward a drain hole or a shallow reservoir of standing water, and keep the fog output pointed above, not at, the substrate. Run a paper towel wick under ducted fog inputs to catch coalescing drips. If you see pooling on tub lids, lengthen the interval before you lengthen the burst.
Do you need a hygrostat or controller, and which ones integrate with common chambers?
Standalone hygrostats vs humidifier built-ins
A built-in dial on a $40 fogger reads the air at the unit, not at canopy height, so it cycles on RH at the fogger while your tubs drift. An external controller with a probe clipped mid-canopy in your martha tent holds a band (say 85–95%) instead of an on/off guess. It also catches the white dust problem early: mineral aerosol from ultrasonic units coats probes and walls, so wipe the sensor weekly and use distilled water (the EPA's humidifier guidance covers this "white dust" and recommends low-mineral water).
Multi-chamber control for 5–20 strain grows
Run one controller per chamber with a splitter on the humidifier side, and log RH per chamber rather than per room. If your controller logs to an app, check where that data lives before connecting it; for Hypha, our data processing terms spell out how grow records and sensor data are handled.
What maintenance does a humidifier in a fruiting chamber require to avoid contamination?
A humidifier sitting in or ducted into a fruiting chamber sprays whatever is in its reservoir directly onto your tubs and substrate. Treat it like any other tool in your workflow: clean on a schedule, use water that will not seed it with minerals or microbes, and never let standing water sit between flushes.
Water quality: distilled vs tap vs RO
Distilled water is the safest choice for ultrasonic units. Tap water carries chlorine and dissolved minerals that get flung into the air as fine white dust, which coats chamber walls and leaves mineral scale in the transducer where biofilm can anchor. RO water is a workable middle ground if you already run a filter; it is not sterile, but it beats tap for scale. If you must use tap, wipe the mineral crust off the transducer weekly instead of letting it build.
Cleaning cadence and reservoir treatment
Empty the reservoir completely every 2–3 days rather than topping it off, since topped-off water accumulates bacteria. Once a week, scrub the tank and transducer with a dilute hydrogen peroxide solution, rinse, and let it dry fully before refilling. If you smell mustiness or see pink or slimy film, run a stronger peroxide soak and increase your cadence. A contaminated humidifier can undo a clean inoculation faster than any other single piece of gear in the chamber.
What are the signs your mushroom fruiting chamber humidity setup is under- or over-performing?
Under-humidification symptoms
Pins form but abort in clusters, or the first flush sets well and the second stalls. Look for side walls that dry between misting cycles, cracked substrate surfaces, and caps that split or crack during expansion. If RH at substrate level reads below your target while the sensor near the fogger reads fine, you have a distribution problem, not a capacity problem.
Over-humidification symptoms
Standing water on the substrate, beads of condensation running down the walls rather than sitting as light fog, and stems that look waterlogged or translucent at the base. Heavy, persistent dripping onto pins invites blotch and wet spot issues. If your tub smells swampy before flush two, back the humidifier off.
Logging RH across flushes to compare builds
Record min/max RH per fruiting chamber for each flush, alongside contamination rate and wet weight, so you can compare builds with data instead of memory. Cleaning matters too: reservoirs grow microbes fast, and the EPA's Use and Care of Home Humidifiers recommends cleaning portable units every third day so the tank doesn't become an aerosol source.
How do you tie humidity data into your grow records?
Log RH at pin and at each flush harvest, not just daily averages. What matters is the RH range during pinning and how it shifted between flushes, because that's what explains why tub 3 fruited heavy and tub 4 stalled.
If you run a Hypha Aeris sensor, its readings sync into Hypha automatically, so the zone's humidity history sits next to each block's flushes, strain, start date, and substrate notes. Manual growers can do the same with a notebook: one line per flush, peak RH, low RH, humidifier changes made.
The payoff shows up by flush three or four. When biological efficiency dips, you can check whether RH drifted before the drop or whether contamination, spawn age, or genetics were the real variable.
FAQ
What size humidifier do I need for a martha tent?
A standard 4-tier martha tent holds about 500 L and wants roughly 150–250 mL/hr of mist output, either ducted from an external unit or placed in-tent. Tents with active fresh-air exchange lose moisture faster than sealed tubs, so lean toward the higher end of that class rather than the lower one.
Can I put a humidifier inside my fruiting chamber?
Yes, and it is the fastest way to hit 95%+ RH, but the reservoir, tank, and transducer all sit in your fruiting zone. Any biofilm on the transducer fogs straight onto your pins. If you go this route, run distilled or RO water only and pull the unit for cleaning between flushes.
Do ultrasonic humidifiers cause contamination in mushroom grows?
The units themselves do not, but their reservoirs can. Standing water grows bacteria and biofilm that gets aerosolized onto your substrate. Tap water adds mineral dust that coats walls and sensors, creating anchoring points for contamination. Empty the reservoir every 2–3 days, scrub with dilute hydrogen peroxide weekly, and never let water sit between flushes.
How do I keep humidity stable in my fruiting chamber without soaking the substrate?
Duty cycle the fogger in short bursts of 10–20 seconds every few minutes instead of long runs, which overshoot by 15–20 RH points in a sealed tent. Point the fog output above the substrate, not at it, slope the floor toward a drain, and use a paper towel wick under ducted inputs to catch drips.
Do I need a hygrostat controller for my fruiting chamber humidifier?
For a single monotub, probably not. For a martha tent or larger, yes: a built-in dial reads air at the fogger, not at canopy height, so your tubs drift while it cycles. An external probe mounted mid-canopy with a 5–7 point deadband holds a tight band and prevents constant cycling.
